MSA 3-2 TBC Coated Header, With Smog Fittings, 79-80 280ZX
You can choose a Z-Car from your garage, or from the selections above, to filter the store or check part fitment.
Performance Exhaust Overview:
A performance engine is an integrated affair. When you modify one set of components, you have an effect on other systems. On a mildly modified engine, a minor upgrade in either the cam specs, exhaust system, or intake can be done independently. For performance, camshafts work best when integrated with upgrades in the exhaust and intake. The exhaust system is probably the first area to improve on any engine, because this will only enhance future modifications. The study of Physics tells us that we usually can't get "something for nothing", but when adding headers and improved exhaust components to an engine, we almost do. The improved exhaust flow and velocity derived from tubular headers and free flowing mufflers is one of the only modifications you can make to an engine which will improve both power and fuel economy.
Includes:
Description:
These outstanding headers are built especially for Motorsport to our strict specifications. The thick exhaust flange is flat machined to promote a consistent seal. It also prevents warping and eliminates the need for spacer height modifications. Exhaust ports have high-quality welds to ensure leak-free performance. We use 1 1/2" primary tubes to ensure increased exhaust flow without any performance loss. This header comes with a flanged adapter to fit to the stock catalytic converter (If you are building a custom racing exhaust not using the converter and would like a 2 1/2" adapter, please give us a call for specifics). Special installation gaskets are included (do not use original equipment type manifold gaskets with headers). This header configuration is for original 280ZX Non-Turbo cylinder heads only. Includes threaded fittings for the EGR Valve and Oxygen sensor.
Thermal Coating:
This header comes with a highly durable and effective Aerospace Thermal Barrier Ceramic or TBC coating, which is good up to 1300 degrees fahrenheit. The satin "polished" silver finish isn't just for good looks, it does a number of good things: First, it cuts radiated heat by approximately 40%. Not only does this help to keep your under hood rubbers and plastics from drying out, it also lowers the temperature of the fuel and air which translates into increased performance. Secondly, locking much of the exhaust heat in the pipe keeps the exhaust flowing more rapidly, also increasing performance. Finally, it protects the header tube metal underneath the coating from corrosion. (Note: If you are interested in creating a custom color scheme under your hood, you may also want to consider our non-coated headers, which you can paint to match however you wish. See part 15-6004 in Related Items below.)

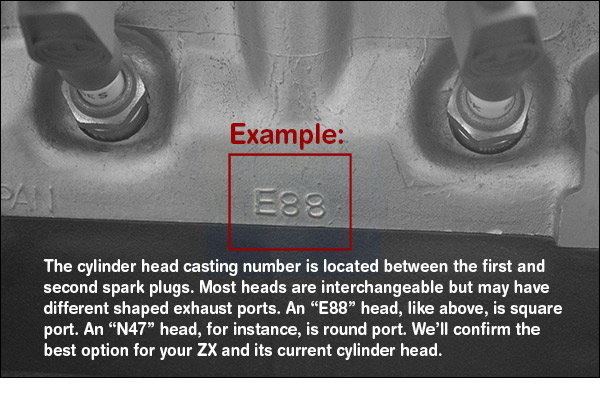

Head Casting Number:
While not required to place your order, it is helpful for us to know your engine's cylinder-head casting number. Some early Z-cars have had engine or cylinder-head swaps, which could have an effect in the determining the correct header for your unique application. If you know the cylinder-head casting number, simply type it in the box above. If you're not certain, just leave that field blank, complete your order, and we'll contact you to make certain you receive the right header the first time. Other companies may not take this extra step, but we're serious about your satisfaction. Please be sure we have your current daytime phone number or monitored email address so that your order may be expedited without delay.
Click the image above for an example.
Smog Legality:
Even with the EGR Valve and Oxygen Sensor fittings, headers may not be street legal in some areas. Check with the motor vehicle code/department in your area.
Oxygen Sensor Note:
280ZX models use a special mounting nut to secure the oxygen sensor to the factory exhaust manifold. Since Nissan used a standard size O2 sensor for these years, we designed these headers so that the O2 sensor mounts directly without the mounting nut. You do not need to purchase a replacement or try to reuse your old, rusted nut.
Model Guide:
Datsun 280ZX
Code Guide:
Datsun S130
Year Guide:
1979, 1980
A performance engine is an integrated affair. When you modify one set of components, you have an effect on other systems. On a mildly modified engine, a minor upgrade in either the cam specs, exhaust system, or intake can be done independently. For performance, camshafts work best when integrated with upgrades in the exhaust and intake. The exhaust system is probably the first area to improve on any engine, because this will only enhance future modifications. The study of Physics tells us that we usually can't get "something for nothing", but when adding headers and improved exhaust components to an engine, we almost do. The improved exhaust flow and velocity derived from tubular headers and free flowing mufflers is one of the only modifications you can make to an engine which will improve both power and fuel economy.
Includes:
- (1) MSA Coated 3-2 Header
- (1) Header Style Manifold Gasket
- (1) Exhaust Adapter
- (1) Catalytic Converter Gasket
Description:
These outstanding headers are built especially for Motorsport to our strict specifications. The thick exhaust flange is flat machined to promote a consistent seal. It also prevents warping and eliminates the need for spacer height modifications. Exhaust ports have high-quality welds to ensure leak-free performance. We use 1 1/2" primary tubes to ensure increased exhaust flow without any performance loss. This header comes with a flanged adapter to fit to the stock catalytic converter (If you are building a custom racing exhaust not using the converter and would like a 2 1/2" adapter, please give us a call for specifics). Special installation gaskets are included (do not use original equipment type manifold gaskets with headers). This header configuration is for original 280ZX Non-Turbo cylinder heads only. Includes threaded fittings for the EGR Valve and Oxygen sensor.
Thermal Coating:
This header comes with a highly durable and effective Aerospace Thermal Barrier Ceramic or TBC coating, which is good up to 1300 degrees fahrenheit. The satin "polished" silver finish isn't just for good looks, it does a number of good things: First, it cuts radiated heat by approximately 40%. Not only does this help to keep your under hood rubbers and plastics from drying out, it also lowers the temperature of the fuel and air which translates into increased performance. Secondly, locking much of the exhaust heat in the pipe keeps the exhaust flowing more rapidly, also increasing performance. Finally, it protects the header tube metal underneath the coating from corrosion. (Note: If you are interested in creating a custom color scheme under your hood, you may also want to consider our non-coated headers, which you can paint to match however you wish. See part 15-6004 in Related Items below.)
Head Casting Number:
While not required to place your order, it is helpful for us to know your engine's cylinder-head casting number. Some early Z-cars have had engine or cylinder-head swaps, which could have an effect in the determining the correct header for your unique application. If you know the cylinder-head casting number, simply type it in the box above. If you're not certain, just leave that field blank, complete your order, and we'll contact you to make certain you receive the right header the first time. Other companies may not take this extra step, but we're serious about your satisfaction. Please be sure we have your current daytime phone number or monitored email address so that your order may be expedited without delay.
Click the image above for an example.
Smog Legality:
Even with the EGR Valve and Oxygen Sensor fittings, headers may not be street legal in some areas. Check with the motor vehicle code/department in your area.
Oxygen Sensor Note:
280ZX models use a special mounting nut to secure the oxygen sensor to the factory exhaust manifold. Since Nissan used a standard size O2 sensor for these years, we designed these headers so that the O2 sensor mounts directly without the mounting nut. You do not need to purchase a replacement or try to reuse your old, rusted nut.
Model Guide:
Datsun 280ZX
Code Guide:
Datsun S130
Year Guide:
1979, 1980
Part Number:
